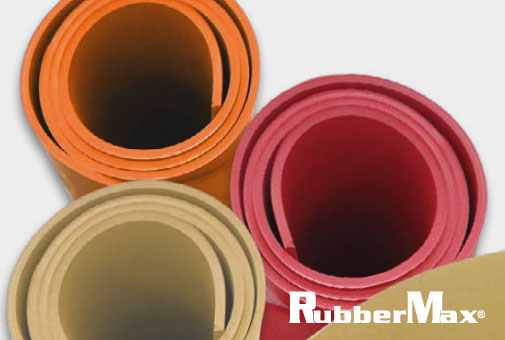

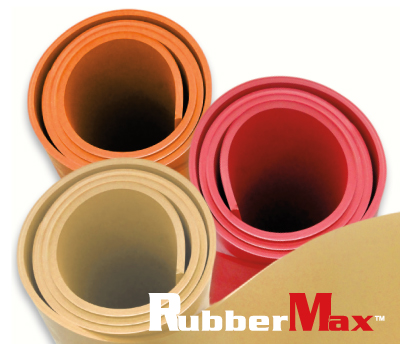

RubberMax® Pro Wear and Pro Wear Eco

RM Biltrite® RubberMax™ Pro Wear Anti-Abrasion Rubber is formulated with high quality rubber and a rich polymer material for excellent tensile strength and flexibility. Specialized Pro Wear rubber products are also available for applications requiring greater anti-abrasion and tear properties. Good for additional advantages and services like fine particle abrasion weathering.

Features

  • Excellent abrasion resistance
  • High tensile strength
  • High elasticity
  • Good tear properties
  • Heavy impact resistance
  • Corrosion resistance
  • Noise reduction
  • Color options









Applications

  • Hydrocyclones
  • Flotation cells
  • Screen decks
  • Track backing
  • Launders
  • Material-handling
  • Molded components
  • Custom fabrications









TECHNICAL SPECIFICATIONS
Name RubberMax®
Pro Wear 40 ECO
RubberMax®
Pro Wear 40
RubberMax®
Pro Wear 50
RubberMax®
Pro Wear 60 ECO
RubberMax®
Pro Wear 60
Item ID M2050-40 M2000-40 M2000-50 M2050-60 M2000-60
Hardness
ASTM D2240
Shore A
(± 5)
40 40 50 60 60
Tensile Strength
ASTM D412
(min)
psi 2611 3046 2176 1740 2466
MPa 18 21 15 12 17
Elongation
ASTM D412
% 600 600 600 450 500
Tear
ASTM D624
lb/in 196 196 168 224 280
kg/cm 35 35 30 40 50
Abrasion
ASTM D5963
mm3
(min)
150 100 110 120 120
Specific Gravity
ASTM D297
g/cm3 1.05 1.05 1.10 1.20 1.15
Resilience % (max) 60 70 60 45 55
Modulus psi 725 725 583 1010 1166
MPa 5 5 4 7 8
Temperature
Range
°F -40 - +167 -40 - +167 -40 - +167 -40 - +167 -40 - +167
°C -40 - +75 -40 - +75 -40 - +75 -40 - +75 -40 - +75
Color Red, Beige, or Orange Red, Beige, or Orange Red, Beige, or Orange Red, Beige, or Orange Red, Beige, or Orange



ROLL DIMENSIONS
  Widths Thicknesses Lengths
U.S. 48” 54” 60” 1/16” 3/32” 1/8” 3/16” 1/4” 3/8” 1/2” 3/4” 1” 33’
Metric 121.9 cm 137.2 cm 152.4 cm 1.6 mm 2.4 mm 3.2 mm 4.8 mm 6.4 mm 9.5 mm 12.7 mm 19.1 mm 25.4 mm 10.1 m

Custom sizes and colors available upon request
